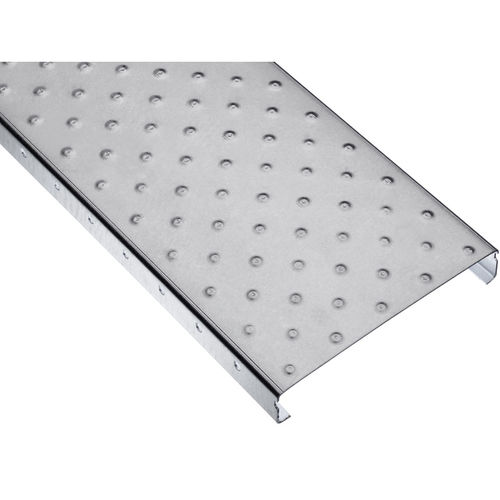

The perforated metal planks, type BN-G33 “Noppe, geschlossen” has upwardly pressed closed nubs and provides a high slip resistance. BN-G33 is suitable for indoor in combination with BN-G33vi stairtreads. BN-G33 is suitable for areas where on the one hand a closed surface is desired and on the other hand a good accessibility must be guaranteed.
Material -
Steel S235JR: 2,0 mm, 2,5 mm
Stainlee Steel: 1,5 mm, 2,0 mm
Aluminium: 2,0 mm, 2,5 mm
Surface traetment -
Steel: untreated, hot-dip galvanized, pre-galvanized
Edelstahl: untreated, pickled
Aluminium: untreated, pickled, anodized
Free cross section - 0,0% closed surfcae
Width -
150 mm, 200 mm, 250 mm, 300 mm, 330 mm
(other widths possible on request)
Height -
30 mm, 50 mm, 75 mm, 100 mm, 150 mm
(corresponing to width and statical specification, other heights on request)
Ball proof - 100% full filled, closed surface
Serration - R10 / V10 (Steel, hot-dip galvanized IFA 1504065)
Longitudinal grid - 133,33 mm (66,66 mm)
Production length - max. 10 m, depending transport limited
