Cartridge mechanical seal LSC50-F seriesmultiple-springfor pumpmetal
Add to favorites
Compare this product
Characteristics
- Type
- cartridge, multiple-spring
- Applications
- for pump
- Material
- metal
- Other characteristics
- balanced, split
- Operating pressure
10 bar
(145 psi)- Operating temperature
Max.: 150 °C
(302 °F)Min.: -40 °C
(-40 °F)
Description
• - Balanced.
• - Multispring.
• - Not dependent on the rotation direction.
• - Rushing connections.
(*) The temperature resistance depends on the material
of the secondary seals used.
The operating limits are defined by the PV factor which
is determined for the sealing system characteristics
and those of the appfcation.
DESCRIPTION:

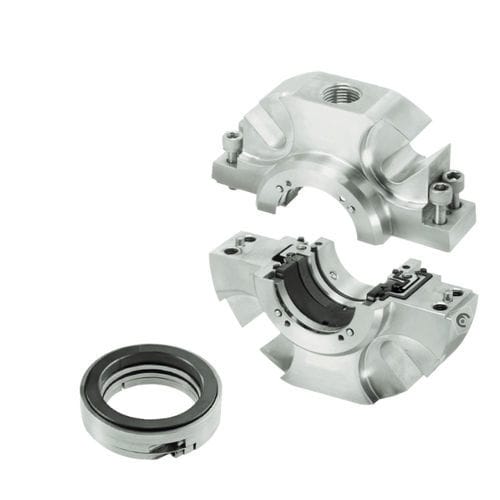

A Split single cartridge with connection for flushing.
For applications vtfiere is necessary to replace braided
packing and there is enough space in the installation or
the removal of the pump is very complex and requires
a large investment of time.
Each half is placed around the shaft. They are joined by
screws, without dismantling the pump.
CONNECTIONS (R):
Rom 50 mm to 82,55 mm: 3/8" NPT.
Rom 88,9 mm to 150 mm: 1/2" NPT.
