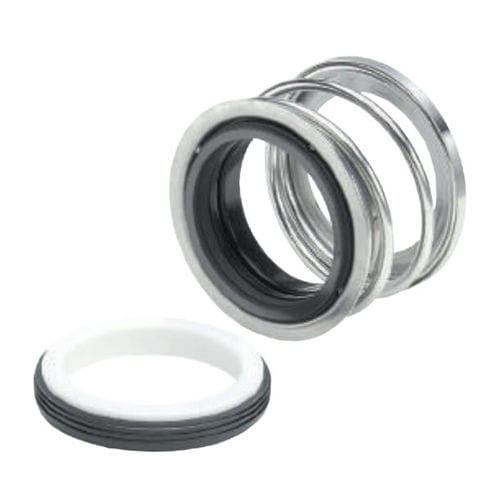

Spring mechanical seal LRB00 seriesbellowsfor pumpfor compressors
Add to favorites
Compare this product
Characteristics
- Type
- spring, bellows
- Applications
- for pump, for compressors
- Material
- metal, rubber
- Other characteristics
- balanced, cylindrical
- Operating pressure
14 bar
(203 psi)- Operating temperature
Max.: 200 °C
(392 °F)Min.: -20 °C
(-4 °F)
Description
CHARACTERISTICS:
• Balanced.
• Not dependent on the rotation direction.
• Single cylindrical spring.
(*) The temperature resistance depends on the material of the
secondary seals used.
The operating limits are defined by the PV factor which is
determined for the sealing system characteristics and those of
the application.
DESCRIPTION:
Mechanical seal with a simple, compact design for
all-purpose use and in particular in applications
with moderate pressures (up to 14 kg/cm 2) such as
pumps and compressors.
