CNC gear-hobbing machine LC 300 - 500
vertical

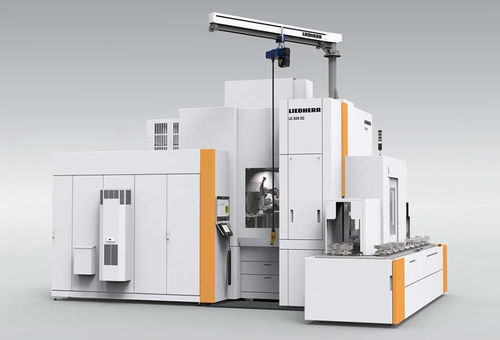

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 2

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 3

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 4

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 5

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 6

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 7

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 8

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 9

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 10

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 11

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 12

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 13

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 14

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 15

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 16

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 17

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 18

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 19

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 20

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 21

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 22

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 23

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 24

CNC gear-hobbing machine - LC 300 - 500 - Liebherr Verzahntechnik - vertical - image - 25

Add to favorites

Compare this product

Characteristics

Control type: CNC
Spindle orientation: vertical
Module: 3.5 mm, 9 mm, 12 mm
(0.14 in, 0.35 in, 0.47 in)
Part diameter: 300 mm, 500 mm
(12 in, 20 in)
Spindle speed: 600 rpm, 900 rpm, 1,500 rpm, 3,000 rpm
(3,769.911 rad.min-1, 5,654.867 rad.min-1, 9,424.778 rad.min-1, 18,849.556 rad.min-1)
Gear hob diameter: 240 mm
(9.4 in)

Description

Liebherr gear hobbing machines are optimally customized to the requirements of universal usability. Our high-performance gear hobbing machines are productive and machine in the highest quality. Maximum flexibility Larger work area NC counter column for long shafts Extended application possibilities of the cutter head FlexChamfer: the most flexible chamfering solution on the market Maximized productivity Fast axis movements thanks to optimized drive design Powerful hob head for use with the latest tools and technologies Shortest set-up times thanks to Liebherr's clamping fixture quick change Improved ergonomics Fold-out steps for easy access Optimum accessibility for maintenance work Ergonomic machine operation thanks to LHStation and LHMobile Machine concept Liebherr gear hobbing machines are optimally customized to the requirements of universal usability. Our high-performance gear hobbing machines are productive and machine in the highest quality. Gear hobbing head for larger and longer tools delivers greater productivity and flexibility Chamfering of workpieces of up to 500mm workpiece diameter during the machining process and a module of 7mm with ChamferCut and/or the new FlexChamfer technology Maximum flexibility thanks to larger work area Counter column with NC technology for maximum ease of setup Internal ringloader automation concept for workpieces up to 100kg Operating concept with LHStation & LHMobile and LHGearTec Improved chip removal thanks to optimized and redesigned machine bed
