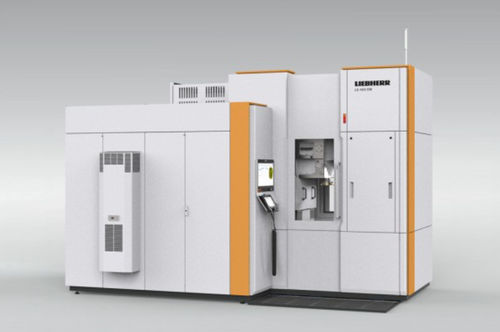

CNC gear-shaping machine LS 400 EM

vertical

The machine concept for the LS 400 EM gear shaping machine from Liebherr represents the cutting edge in versatility and efficiency. This manually loadable machine can be used for wet and dry machining and promises complete Liebherr quality coupled with maximum flexibility. The use of premium components and powerful drives guarantees excellent quality over the product’s entire life cycle. Despite its power and impressive functionality, the LS 400 EM is remarkable for its exceptionally compact machine body that requires only a minimal footprint. This machine not only offers high productivity but a wide range of components at a minimal cost. The LS 400 EM comes standard with a modern control design and the LHGearTec touch-based user interface for intuitive and efficient control. Axes X1: Column slide radial movement Y1: Lateral column offset value Z1: Positioning axis for the stroke position Z2: Stroke length adjustment Z3: Tool stroke movement Z4: Tailstock vertical motion B4: Tool back-off movement B5: Column swivel axis C1: Tool rotary movement C2: Workpiece rotary movement Highlights Machining workpieces with a max diameter of 400 mm and shafts with a max shank length up to 500 mm High rigidity guarantees the best machining quality Heat-proof machine bed with perfect chip removal Directly driven machine table to satisfy the most demanding quality requirements Wet machining is standard L-doors for perfect accessibility and crane loading from above Optionally available with a handling device (crane) Comes standard with comprehensive software functionality Machine is ready for quick installation and startup straight out of the box Exceptionally small footprint
