Electric lift system LL-4450 series

platformhandlingground

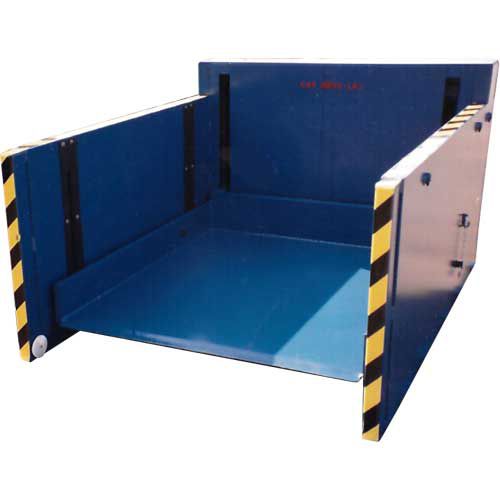

The Level-Lifter ground entry lift table is a unique product for applications where a pit mounted lift table is required but not practical. Thin side walls allow for easy access to the product being handled. The Level-Lifter features an exclusive 4-point lift system which is ideal for handling unstable loads where deflection of the table top would be undesirable. A lowered height of 0.5", versus 7" or more for most conventional lift tables, brings the height of the top level to a more accessible work height. Loads can be adjusted to individual comfort level through the use of standard pushbutton or optional foot switch control. Narrow sides allow easy access for loading and positioning. 4-Point Lift Exclusive lift system provides minimum load deflection for handling unstable loads where a level platform is critical. Photo Eye Photo eye to interrupt lowering in the event of obstruction. Simply clear the obstruction to continue lift operations. Beveled Lip Lip is bevelled into platform a full 3" to allow for smooth entry even with a hand pallet truck. Portable Align platform and insert chained pin through to convert platform into a support for pallet jack.
