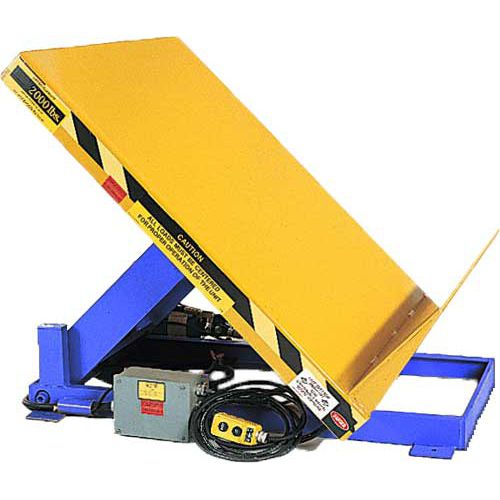

Tilting table Max-Compact

When floor space is limited, the Max-Compact Tilt table is the answer. This tilt table will complete it's tilt cycle within the space of it's 22.5" to 34.5" x 48" base frame. The Max-Compact hydraulic tilt table is available in 2,000 to 6,000 lbs. capacities with a 45° angle of tilt. The unit is equipped with double acting cylinders and is powered up and powered down. The scissor leg rollers are entrapped within the top and base of the table to ensure maximum stability and safety. Standard Features •Unit tilts 45° within own base frame •Internally mounted 1 HP TENV motor •Single or three phase voltage •If 115/1/60V, 20 amp circuit required •24V operating control voltage •NEMA-4X constant-pressure pushbutton box •NEMA-12 prewired controls •Magnetic starter & control transformer •Thermal overload & fuses •10 ft. power cord (plug not included) •12 in. high lip on pivot end •Double-acting hydraulic cylinders •Smooth steel tops •3.75" straight safety toeguards •Black and yellow safety stripes on toeguards •Chrome-plated cylinder piston rods and axles •Surfaces degreased, oxide primed & finished •Lifetime self-lubricating, antifriction bearings •Internal high-pressure gear pump •Check, relief, flow control & solenoid valve •Suction and return filters •Includes hydraulic oil
