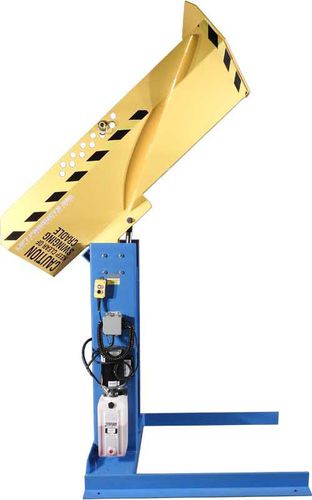

Drum rotator LPDD series

hydraulic

Lift Products’ Hydraulic Drum Dumpers allow for safe and efficient drum dumping of a wide variety of drum sizes and heights. Constructed of heavy-gauge carbon steel with a powder coat finish, The LPDD series of drum dumpers handle weights up to 1,500 lbs. with dump heights of 36”, 48”, or 60”. An adjustable hold down bar secures the drum and accommodates drum heights of up to 43”. Custom hold down bar heights are available. With an up speed of only 25 seconds, material from a drum is quickly dumped at a 45-degree angle down the reinforced steel chute. Standard chute reach lengths are between 7” and 11” and can be customized per application. For increased safety, the LPDD Drum Dumper features an adjustable flow control to safely lower the chute to its down position. The unit features a NEMA12 power up and gravity down power unit that is equipped with a 1 HP motor and 1 GPM pump. Units are available in both stationary and portable designs to fit all applications. Safe Lowering Lowering of the chute is done safely with an adjustable flow control valve to ensure the chute does not slam. Simple Controls A handy, magnetic backed control box features simple up and down push buttons to control the unit. Restraining Bar A wide range of drum height can be dumped by moving a quickly changed restraining bar to the desired height. Structural Ribs AWS welded structural support reinforces the chute, providing rigidity and years of dependable service.
