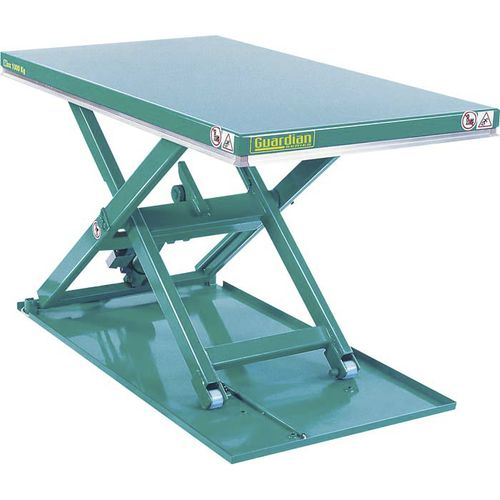

Scissor lift table Guardian LPBL
manualstationarylow-profile

scissor lift table
scissor lift table
scissor lift table
scissor lift table
scissor lift table
scissor lift table
Add to favorites
Compare this product


Characteristics

Technology
scissor
Operation
manual
Type
stationary
Other characteristics
low-profile
Capacity

1,100 lb, 2,200 lb, 3,300 lb
(499 kg, 997.9 kg, 1,496.9 kg)

Lowered height

3 in, 4 in

Lifting height

33 in, 34 in

Tray length

55 in, 61 in

Tray width

31.5 in, 39.5 in

Lift time

10 s, 18 s, 25 s

Description

The Guardian Series represents the ultimate in lift table safety with features that are optional or not available on other lift tables. Guardian Series Low Profile models have a lowered height of only 3.25". The low profile feature provides greater flexability for tall pallet applications and operator height differences. Installation costs are reduced since the need for a floor pit is eliminated. All "Guardian" Series lift tables meet and exceed both U.S. (ANSI) and European safety standards for lift tables. Guardian Series lift tables are designed as a work station to provide improved ergonomic conditions to ensure the health, safety and comfort of the operator together with improved productivity. Safety Bar Aluminium safety bar, stops descent in case of contact with obstructions Scissor Gaps Safety clearance between scissors to prevent trapping during operation Check Valve Stops the lift table lowering in the unlikely event of a hose break Remote Power Unit 1 HP motor and pump combination is a highly efficient and quiet
