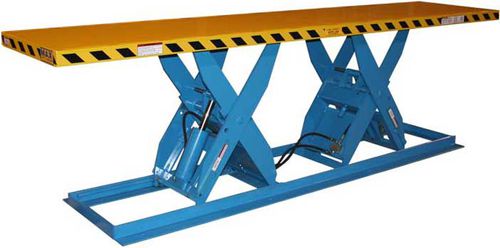

Tandem scissor lift table LPT-XXL series

electro-hydarulicstationarycustom

In applications where loads are very long a double long scissor design is required. Extreme overhang on a single scissor table can damage the table and create an unsafe condition. Edge, side and maximum load capacities are increased by adding an additional set of scissor arms to support the platform. The Max-Double Long is a two scissor lift system built into one frame assembly. Tops range from 8 to 16 feet with other custom lengths and widths available. Zerk Fittings On camroller and pivot points. Regreasable. Lasts longer than lifetime lubricated bearings. Easily serviced. 15 Min. Motor Intermittent duty. Able to be run for 15 minutes of every hour. Suitable for medium and high cycle applications. Trapped Rollers Captured 'Lift-Lok' secures top and base leg rollers and allows for easy maintenance access when lowered. Teflon Seals Extends cylinder life by reducing friction and wear. Faster stroke speeds than rubber. High chemical resistance.
