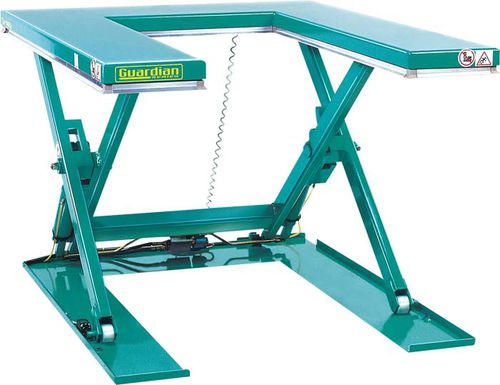

Scissor lift table U-Lift
electricstationarylow-profile

scissor lift table
scissor lift table
scissor lift table
scissor lift table
scissor lift table
scissor lift table
Add to favorites
Compare this product


Characteristics

Technology
scissor
Operation
electric
Type
stationary
Other characteristics
low-profile, with U-shaped platform
Capacity

2,200 lb, 3,300 lb
(997.9 kg, 1,496.9 kg)

Lowered height

3 in, 4 in

Lifting height

34 in

Stroke

29.5 in, 30.75 in

Tray length

55.88 in, 59.88 in

Tray width

45.63 in, 50 in

Lift time

18 s, 25 s

Description

The Guardian U-Lift Tables have all the safety features of our Low Profile Guardian Series Lift Tables. The low profile feature provides greater flexability for tall pallet applications and operator height differences. The "U" shaped low profile table is ideal for handling wire baskets, containers, plastic and wooden open bottom pallets. This design allows loading with either a 21" wide manual or electric pallet truck without the need for a loading ramp. Installation costs are reduced since the need for a floor pit is eliminated. In addition, any potential tripping hazard that a ramp might pose is removed. Safety Bar Aluminium safety bar, stops descent in case of contact with obstructions Scissor Gaps Safety clearance between scissors to prevent trapping during operation Ground Entry Open bottom pallets able to be ground loaded with 21" wide jack Remote Power Unit 1 HP motor and pump combination is a highly efficient and quiet
