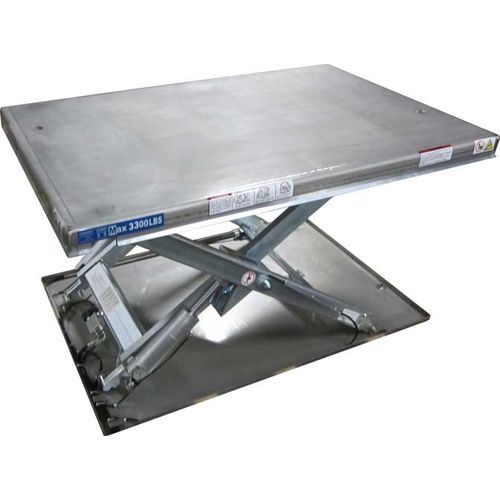

Scissor lift table LPBL-SG series

hydraulicstationarylow-profile

The Guardian Series represents the ultimate in lift table safety with features that are optional or not available on other lift tables. Guardian Series Low Profile models have a lowered height of only 3.25". The low profile feature provides greater flexability for tall pallet applications and operator height differences. Installation costs are reduced since the need for a floor pit is eliminated. The Stainless / Galvanized Guardian Low Profile lift table is ideal for wet applications. The LPBL-SG series includes: •Stainless Steel Platform & Base •Cold Galvanized Scissor Frame Assembly •Stainless Steel Pins •Steel-It Epoxy Cylinders •IP55 Electrical Connections •Remote Power Unit (RPU) Safety Bar Aluminium safety bar, stops descent in case of contact with obstructions Scissor Gaps Safety clearance between scissors to prevent trapping during operation Check Valve Stops the lift table lowering in the unlikely event of a hose break Remote Power Unit 1 HP motor and pump combination is a highly efficient and quiet
