Scissor lift table LPBLU-SG serieselectricmanualstationary
Add to favorites
Compare this product
Characteristics
- Technology
- scissor
- Operation
- electric, manual
- Type
- stationary
- Application
- loading
- Other characteristics
- with U-shaped platform
- Capacity
2,200 lb, 3,300 lb
(997.9 kg, 1,496.9 kg)- Lowered height
3 in, 4 in
- Lifting height
34 in
- Stroke
29.5 in, 30.75 in
- Tray length
55.88 in, 59.88 in
- Tray width
45.63 in, 50 in
- Lift time
18 s, 25 s
Description

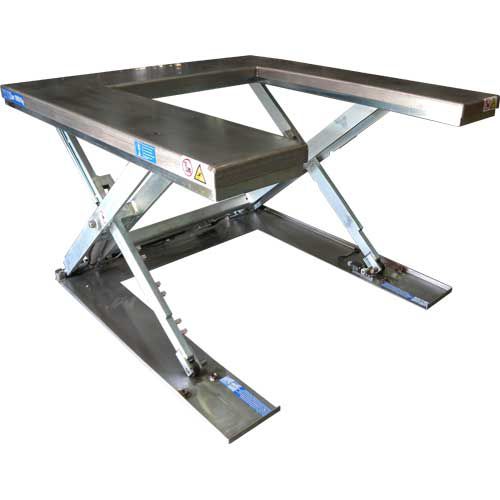

The "U" shaped low profile table is ideal for handling wire baskets, containers, plastic and wooden open bottom pallets. This design allows loading with either a 21" wide manual or electric pallet truck without the need for a loading ramp.
The Stainless Steel Galvanized Guardian U-Lift Tables have all the safety features of our Low Profile Guardian Series Lift Tables with these additional features:
•Stainless Steel Platform & Base
•Cold Galvanized Scissor Frame Assembly
•Stainless Steel Pins
•Steel-It Epoxy Cylinders
•IP55 Electrical Connections
•Remote Power Unit (RPU)
Safety Bar
Aluminium safety bar, stops descent in case of contact with obstructions
Scissor Gaps
Safety clearance between scissors to prevent trapping during operation
Ground Entry
Open bottom pallets able to be ground loaded with 21" wide jack
Remote Power Unit
1 HP motor and pump combination is a highly efficient and quiet
