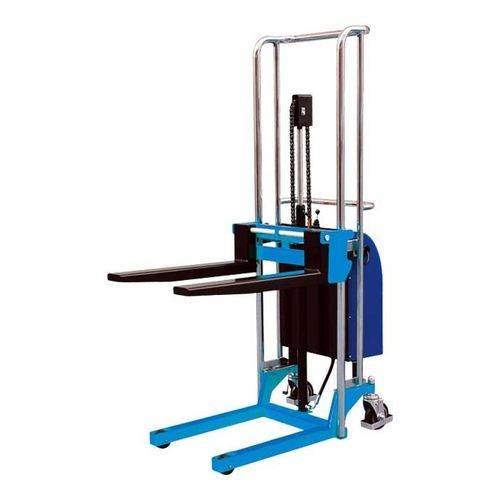

Semi-electric stacker truck MMSE-30

walk-behindcompactwith single fork

The Maxx-Mini Lifter is a ergonomically friendly lifter used for a variety of applications. Whether it's placing small pallets or containers from shelving, placing loads on work benches, or used as a work positioner; it's light tubular construction makes it easy to maneuver. The Maxx-Mini Lifter's overall compact design allows it to get into the tightest of spaces. The battery operated lift includes a 12 volt battery and automatic on-board charger. The lift comes standard with 22" long adjustable forks, a 29.5" x 22.8" chrome slide on platform is optional for applications where a platform is preferred. Lift is accomplished by electrically pumping hydraulic fluid into the cylinder. As the cylinder extends, it elevates a mounted chain pulley that is attached to the platform. The platform rolls up the dual steel uprights in a secure fashion with three points of contact per upright. Adjustable Forks Forks can go both over the ourigger or between the outrigger to handle a wide variety of open and closed bottoms. Simple Controls Conveniently located intuitive controls are easy to use. Includes lift/lower stick, keyswitch, BDI and charge lights. Chain Pulley Forks are raised by the cylinder which pushes up the mounted chain pulley. The chain then elevates the carriage. Secure Top Forks actuate smoothly on two vertical uprights secured by three points of contact per upright for easy positioning.
