Tilting table LPDW series

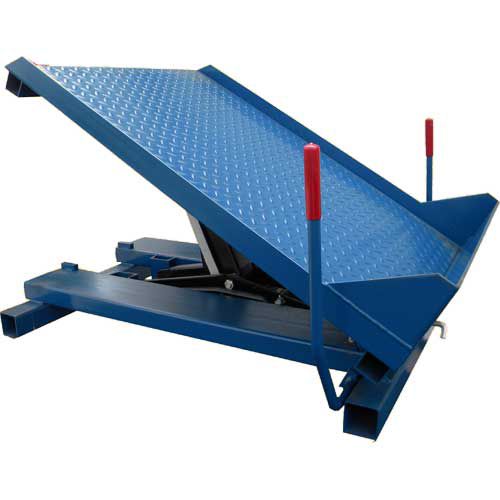

The Maxx-Ergo Tilters are designed to tilt totes, containers, tubs, wire baskets, and boxes or anywhere where tilting will allow easier access to retrieving or placing parts into a container. The manual pump tilt is an economical solution to placing the container at the right tilt angle for the best ergonomic solution. With a tilt range of 0-35° and capacity of 2,000-3,000 lbs. the Ergo-Tilter Series can handle most applications. The base model has a lowered height of 9". The adjustable height base frame has a height adjustment of 18" - 22". Optional caster can be added to either the standard or adjustable height models (adding an additional 7-1/2" to the height). A fixed raised base can be ordered. A 4" lip is standard on all models and custom lips are available. Fork pockets are standard on all models. New Air Bag Powered Option. Fork Pockets Built-in fork pockets are standard on the Ergotilter allowing the tilter to be easily transported by fork lift or walk behind stacker. Dual Handles Manual pump handles are located on both sides of the Ergotilter allowing the operator to tilt the load from either side of the unit. Release Valve Centrally located release valve is on the lipped end of the Ergotilter minimizing the operator's degree of movement. Optional Air New Optional Air Actuator tilt is ideal for quicker tilt speeds, repetitive tilting, or clean room applications.
