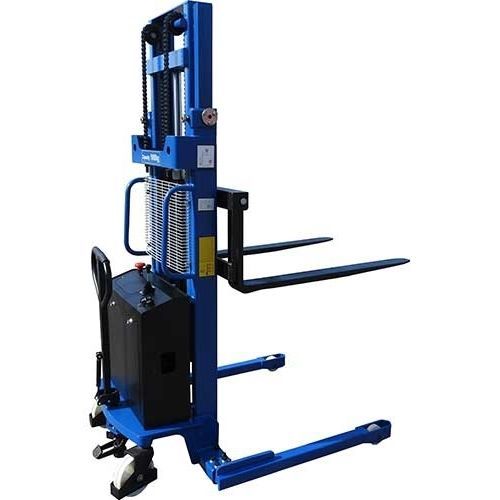

Semi-electric stacker truck MXEM series

walk-behindtransportfor pallet

The MXEM manually pushed walkie behind straddle stacker with electric lift is an economic solution for pallet handling applications in which the frequency of lifting is moderate. It can be used in a variety of material handling applications where the distances being traveled are short. A common application is for the loading and unloading of multiple pallets from a semi-truck but it can also be used as a mobile work positioner and for stacking pallets on top of one another. The electrically powered lift is easily actuated by use of the centrally located control stick. Built in 12V battery, integral battery charger, amp meter, keyed on/off switch and foot actuated floor lock come standard. The MXEM features both adjustable forks and adjustable straddle legs, a operator safety screen which provides a barrier between the user and the cylinder, and the 7.75"ø phenolic rear steer wheels provide good maneuverability in narrow spaces. Entrapped Rollers Rollers for the fork carriage are entrapped within a steel "C" channel providing secure placement of loads. Simple Controls Centrally located lift/lower stick, amp meter, and key switch make operation of the stacker simple and intuitive. Bolt Pattern Our pattern of six bolts ensures structural stability of the adjustable straddle legs increasing overall safety. Push Handles Dual push handles, located at an ergonomic height, reduce the amount of effort required to transport the load.
