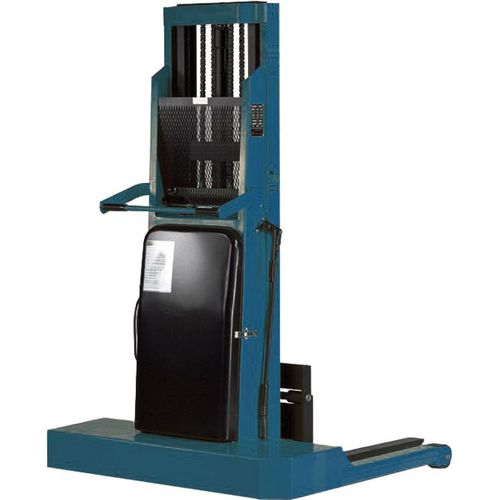

Semi-electric stacker truck MXIBH series

walk-behindfor pallethandling

The MXIBH series is a manual push / powered lift series of trucks. Ideally suited for those applications with lighter loads and short travel distances that do not require a self-propelled unit. Whether its pallet handling or special use with one of our many options, this is an inexpensive way to solve your material handling or ergonomic needs. The adjustable fork models, MXIBH-A and MXIBH-T, with outboard straddle legs allow the lifting of pallet loads with bottom boards. This series also allows greater lift heights of up to 12 feet and can handle most standard pallets. The rigid fork models, MXIBH-R, are suited for those requirements such as lifting wire baskets, containers or pallets with open bottoms. This design allows for close access to the load for the outrigger is located under the fork. Dual Chain Heavy duty dual chain lifting system provides efficient and realible actuation mounted on chrome plated lift cylinder. Simple Controls Centrally located lift/lower stick, amp meter, and key switch make operation of the stacker simple and intuitive. Floor Lock Ergonomically placed lever enables dual adjustable floor locks, creating a safe and secure positioning system. Safety Screen Heavy duty steel safety screen protects operators from accidental contact with lifting chains and cylinder.
