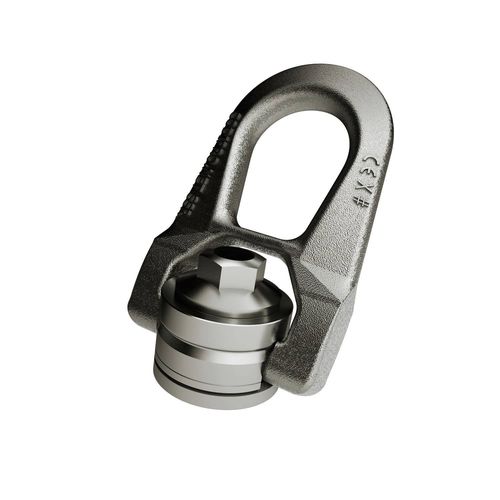

Articulated hoist ring SS.FE.DSRfemalestainless steel
Add to favorites
Compare this product
Characteristics
- Configuration
- articulated
- Mounting
- female
- Other characteristics
- stainless steel
- Capacity
Max.: 10,000 kg
(22,046.2 lb)Min.: 300 kg
(661.4 lb)
Description
The stainless steel double swivel ring, SS.FE.DSR, is suited for use in a number of environments including maritime, chemical, corrosive and humid.
The female stainless steel double swivel ring SS.FE.DSR can be utilized with different lengths in the threaded parts. It has a safety rating of 5 and class rating that is >8. The double articulation permit it to line up flawlessly with the sling. There is the option of a higher WLL on demand.
It is available from M8 to M16 as the standard for 0.3 t to 1.5 t loads. It is very ergonomic and easy to screw, allowing an existing fixation point to be used. There are plane holes and other threads available to use on demand and it also available with an axis.
