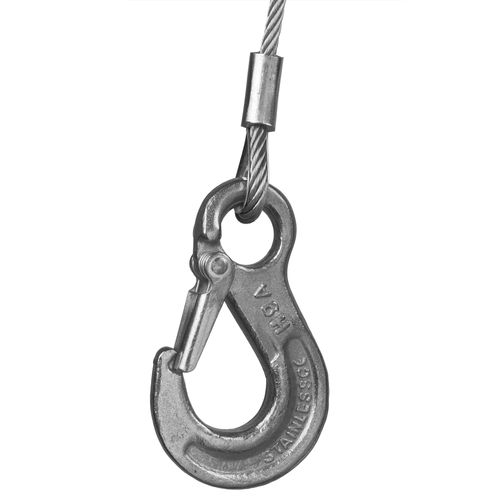

Wire rope sling 84154-pointstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- wire rope, 4-point
- Material
- stainless steel
- Load capacity
Min.: 250 kg
(551.2 lb)Max.: 13,000 kg
(28,660.1 lb)
Description
Advantages
- Safety factor : 5
- Individual marking and traceability
- Standard : EN13414-1
- Instructions : NI 11002
- Delivery with EC declaration
Technical characteristics
- Wire rope: stainless steel grade AISI 316
- Ring, hooks, thimbles and sleeves : stainless steel grade AISI 316L
- Special lengths and assemblies on request
Composition
- 1 head ring 9403
- 2 shackles 20
- 4 wire rope lengths 8088 or 8089
- 8 protective thimbles 2296
- 8 stainless steel sleeves MINox
- 4 stainless steel eye sling hooks CRoCHIN14
