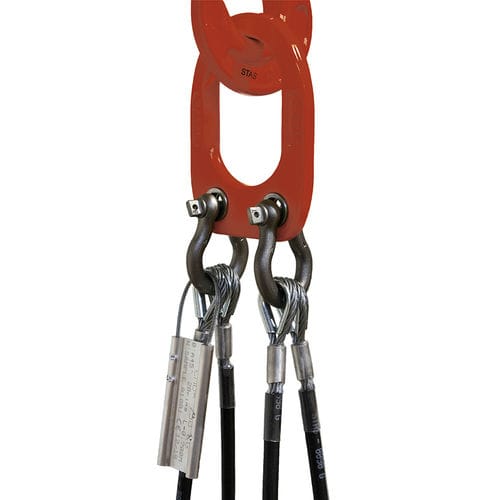

Wire rope sling 89094-pointgalvanized
Add to favorites
Compare this product
Characteristics
- Type
- wire rope, 4-point
- Material
- galvanized
- Load capacity
Max.: 9,950 kg
(21,936 lb)Min.: 560 kg
(1,234.6 lb)
Description
Advantages
- Safety factor : 5
- Individual marking and traceability
- Standard : NA
- Instructions : NI 11002
- Delivery with EC declaration
Technical characteristics
- Galvanized wire rope with vulcanised neoprene rubber coating
- Aluminium sleeves pressed and deburred
- Special lengths and assemblies on request
- Not recommended for saline environment
- operating temperature : from -20°C to +60°C
- Protection for the load, the sling and the operator
Composition
- 1 head ring 9353
- 2 shackles 1221
- 4 wire rope lengths 8898
- 8 protective thimbles 1300
- 8 aluminium sleeves 231
- 4 eye sling hooks 13014
