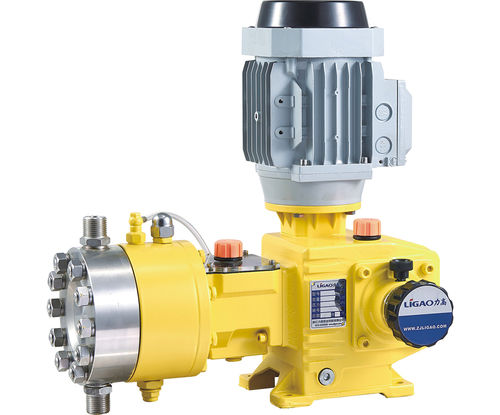

Diaphragm pump JYSX series

for wastewaterfor chemicalswith electric motor

Accurate Hydraulic Diaphragm Metering Pump JYSX Capacity range 10-180lph, 8-140bar JYSX series hydraulic diaphragm pump is robust and minimal maintenance design. It is integrated with air release valve, safety valve, and oil make-up valve. The air in the dosing head can be automatically released. Features of LIGAO Hydraulic Diaphragm Metering Pump: Ligao hydraulic diaphragm metering pump consists of three main devices: (1) driving device, (2) adjusting device, (3) liquid delivery device. The crankshaft which reduces motor rotation speed by worm and worm gear makes the piston reciprocate in the hydraulic oil chamber. This reciprocating movement of the piston makes the PTFE diaphragm and the liquid which is isolated by the diaphragm sucked and discharged. Each pump is with internal pressure relief valve protecting pump from over pressure conditions. The flow rate can adjusted via unique adjusting mechanism from 0-100%. The adjustment can be carried when pump is in operation or at stop. The steady sate accuracy is ±1% from 30%-100% of the maximum output. Automatic operation is achieved by variable speed drive. LIGAO hydraulic diaphragm metering pumps are capable of dosing corrosive, vaporing, flammable, explosive or toxic solutions. It can also transport suspended liquid or moderately viscous liquid. Double diaphragm with diaphragm rupture detecting system is available to prevent accident caused by mixture of hydraulic oil and the liquid after diaphragm ruptures. Materials: l Pump head: SS304,SS316 l Pump case: Cast Iron l Diaphragm: PTFE l Valves: SS304,SS316 l Valve Ball: SS304,SS316, Ceramic
