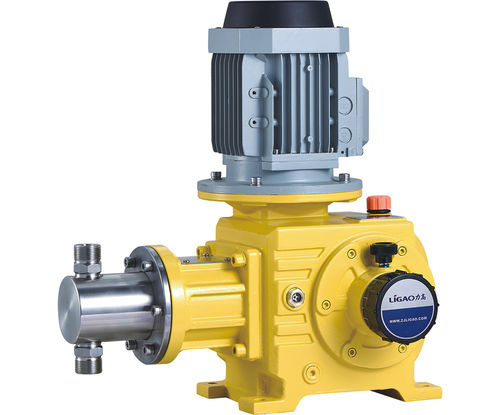

Plunger pump JSZ series

with electric motorindustrialmetering

Accurate Plunger Metering Pump Capacity range 6-600lph, 6-400bar JSZ series high performance plunger metering pump is fully engaged mechanism for heavy duty use. The unique adjusting mechanism make the pump smoothly adjust from 0-100%. It has precise dosing capability even at maximum pressure. The motor can be both vertical and horizontal installed. Multiplex gear box with one motor drive and pump base is available. Features: l Flow rate can be adjusted via unique adjusting mechanism from 0-100% l The adjustment can be carried when pump is in operation or at stop l The steady accuracy is ±1% from 30%-100% of the maximum output l Automatic operation is achieved by variable speed drive l Special application for high temperature or low temperature is available with cooling jacket or heating jacket Materials: l Pump head: SS304,SS316 l Pump case: Cast Iron l Plunger: Ceramic or SS316 coated with ceramic l Packing seal: PTFE and SS316 Ring l Valves: SS304,SS316 l Valve Ball: SS304,SS316, Ceramic
