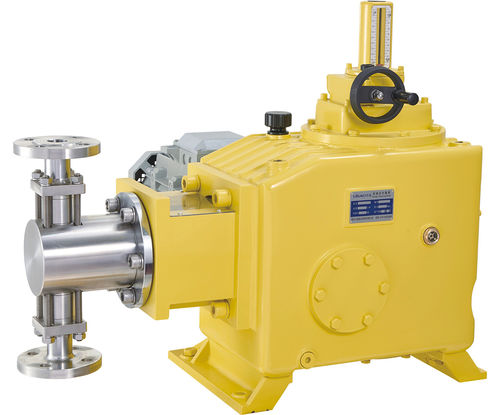

Plunger pump JDR series

for chemicalswith electric motorchemical

High Pressure Plunger Chemical Pump JDR Capacity range 92-6050lph, 8-500bar JDR series plunger type metering pump is designed for flow and high pressure dosing. The Max pressure can up to 50Mpa. The liquid end is coated ceramic from SS316 piston. The plunger packing seal is PTFE compressed by SS316 gland ring to grantee the high pressure and for extended life with minimal leakage. JDR motor can be both vertically and horizontally mounted. Multiplex gear boxes with one motor drive and pump base is available. Widely used in petroleum, chemical industry, electric power, metallurgy, mining, shipbuilding, light industry, agriculture, national defense department and etc. Features: l Flow rate can be adjusted via unique adjusting mechanism from 0-100% l The adjustment can be carried when pump is in operation or at stop l The metering reproducibility is within ±1% from 30%-100% of the maximum output l Automatic operation is achieved by variable speed drive l Special application for high temperature or low temperature is available with cooling jacket or heating jacket Materials: l Pump head: SS304,SS316 l Pump case: Cast Iron l Plunger: SS316 coated with ceramic l Packing seal: PTFE and SS316 Ring l Valves: SS304,SS316 l Valve Ball: SS304,SS316, Ceramic
