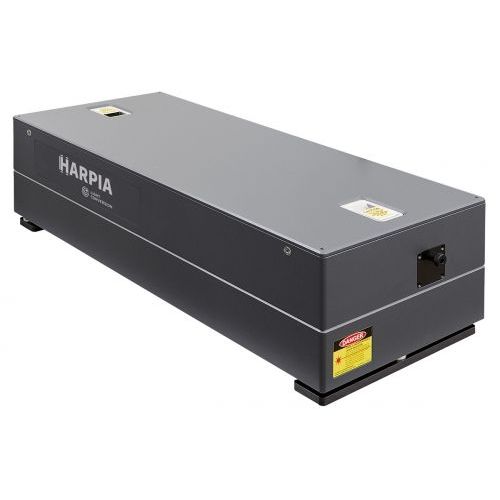

Fluorescence spectrometer HARPIA-TF

measurementcompactautomated

FEATURES • Straightforward operation • Automated spectral scanning and calibration of upconversion crystal and prism • Easy switching between fluorescence upconversion and TCSPC modes • Measurement of fluorescence dynamics in the femtosecond to microsecond range • Full control over polarization, intensity, delay and wavelength OVERVIEW • Combined femtosecond upconversion and TCSPC measurement in a small footprint • Straightforward operation and easy day‑to‑day maintenance • Works as an add‑on to a HARPIA‑TA or as a standalone unit • Easy switching between fluorescence upconversion and TCSPC modes • Compatible with PHAROS and CARBIDE series lasers running at 50 – 1000 kHz • Analog PMT detector option for fluorescence upconversion • Automated spectral scanning and calibration of upconversion crystal and prism • Measurement of fluorescence dynamics in the femtosecond to microsecond range • Full control over the following parameters of the pump beam: – Polarization (using a Berek polarization compensator) – Intensity (using manual or automated continuously variable neutral density filters) – Gate delay (using an optical delay line) • Spectrally‑resolved fluorescence detection using a monochromator • When combined with a HARPIA‑TA main unit, a single monochromator can be used for both time‑resolved absorption and fluorescence measurements with no detector swapping necessary. Other monochromator options are available, such as a double subtractive monochromator for higher TCSPC time resolution The HARPIA‑TF is a time‑resolved fluorescence measurement module which combines fluorescence upconversion and TCSPC techniques.
