UV disinfection unit UV-FLOW-WL series

ozonefor the food industryfor the pharmaceutical industry

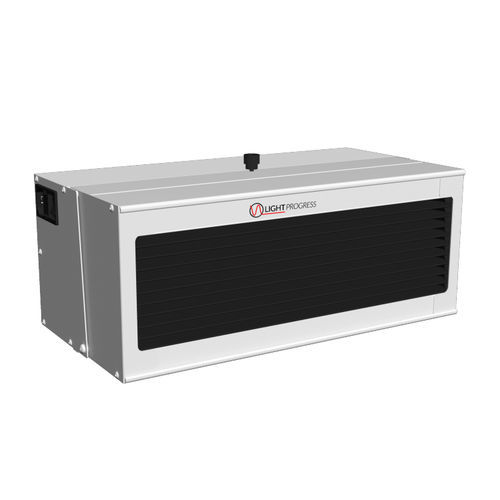

The UV-FLOW .... WL is a controlled unidirectional flow device with a 180° beam pattern; the powerful UV lamp inside is provided in 2 different power models, each with a narrow emission peak at wavelength of 253.7 nm. (nanometers), which has a strong germicidal effect against all micro-organisms (molds, bacteria and viruses). There is also a parabolic, mirror bright aluminum surface, which generates UV rays parallel beams by reflection. These beams pass through a special black laminated grid that directs UV rays to form a unidirectional flow ("blade UV"). When installed according to the instructions, this device can be used in the presence of people for intensive and continuous air disinfection. The UV-FLOW .... WL must be anchored at wall, at a fixed minimum height (see technical specification for details) from the floor to generate a special horizontal flow that will create a "zone of intense radiation" below the ceiling, which destroys all airborne microorganisms, due to natural convection of air. The air, rich in microbes, is continuously treated and disinfected by the ultraviolet rays; a progressive decontamination of bacteria, viruses and molds is made, decreasing the possibility of bacterial, viral transmissions and contaminations in general. Continuous operation ensures a permanent progressive healthy environment, especially in hospitals, schools, restaurants, indoor workplaces as offices, laboratories, etc..An extremely important disinfection activity can be done in hospitals intensive cares units, to prevent the spread of diseases such as TB and other transmissible pathologies through air.
