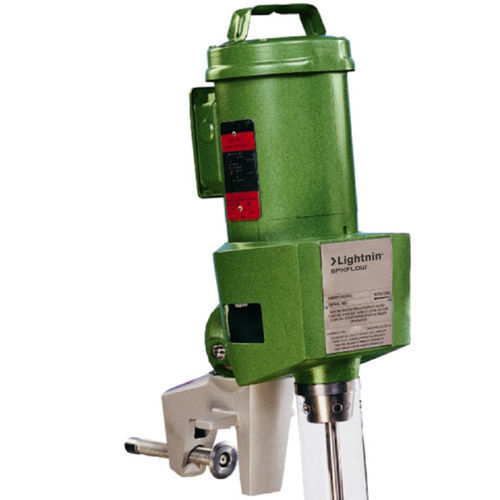

Dynamic mixer Classic series

batchfor liquidsvertical

A variety of styles, motor types and mounting options make Lightnin CLASSIC Mixers the right choice for a variety of applications from high flow to high shear. FEATURES • Rugged Dura-Mix motor designed for long life • One-piece aluminum housing • Explosion-proof motors are available OPTIONS Direct-Drive Mixers for High-Shear Applications • Motor and shaft are coupled directly with pilot and keyway for accurate alignment and positive connection • Positive chuck grips the mixer shaft to prevent unintentional shaft release • Welded rigid coupling provides added stability on longer shafts Choice of Mount Styles • Clamp Mount • adjusts 90° vertically, 360° horizontally • indexed ball and socket permits precise duplication of settings • clip mount option available for high-shear small-batch applications Fixed mount for open tanks • for large tanks and continuous processes requiring extra-long shafts • shock mounts protect drive against high fluid forces Fixed mount for closed tanks • with removable coupling for added stability in applications requiring long overhung shafts • ASA 150# series flanges are available in solid steel or faced with 316 SS • 60 psig stuffing box • Optional stuffing box for lower pressures • Available with low-maintenance double mechanical seals Clamp-Mount Air-Drive Mixers for use in flammable or explosive environments • 1/3-, 1 and 3-hp models available • Lightweight, easy to handle • Optional system filters air supply, regulates pressure and automatically adds oil to lubricate motor
