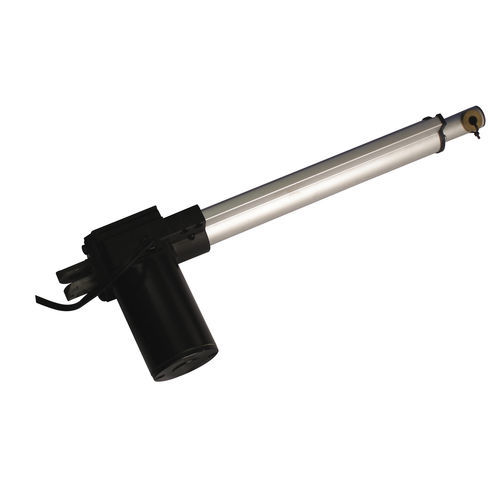

Linear actuator LAM1 serieselectricworm gearaluminum
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Technology
- worm gear
- Material
- aluminum, alloy
- Motor
- DC
- Voltage
- 24-volt, 12-volt
- Protection class
- maintenance-free
- Applications
- for medical applications, for solar trackers
- Stroke
500 mm
(19.685 in)- Speed
Min.: 3 mm/s
Max.: 10 mm/s
Description
Adopted aluminum alloy shell, telescopic pipe and other components, and parts of high strength plastic worm gear or powder metallurgy gear. Design specially application in medical treatment, office furniture, solar tracking and so no. light load, low noise high quality products.
Linear Actuator is driven by 12/24/36/48VDC motor
Working environment temperature 5 ℃ to 40 ℃ ，if need -40 ℃ to + 70 ℃, consulting local office.
Protection grade: IP54, IP55, (IP56, IP65, IP66), insulation class: F (H)
long-life grease, maintenance-free.
