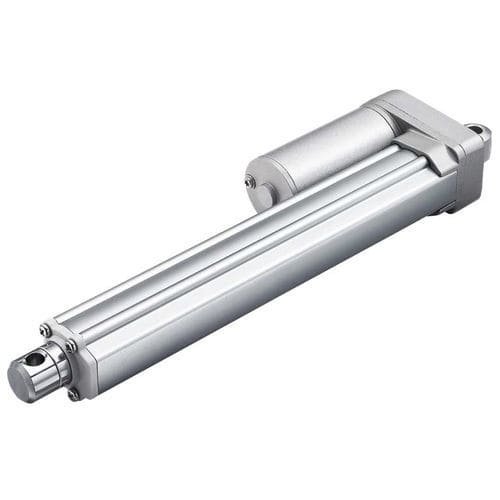

Mini actuator linearelectricworm gear
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Technology
- worm gear
- Material
- aluminum, alloy
- Motor
- DC
- Voltage
- 24-volt, 12-volt
- Protection class
- IP65, IP66
- Other characteristics
- mini
- Stroke
Min.: 20 mm
(0.787 in)Max.: 1,000 mm
(39.37 in)- Force
Min.: 50 N
Max.: 4,000 N
- Speed
Min.: 2 mm/s
Max.: 58 mm/s
- Ambient temperature
Min.: -20 °C
(-4 °F)Max.: 60 °C
(140 °F)
Description
LAM32 Linear Actuator
◆ 12/24/36/48VDC; 12/24/36/48VDC (PTC)
◆ Aluminum Alloy Joint or Customized
◆ Stroke:20-1000mm,Compact Size
◆ Protection Class: IP66D
◆ Certificate: EC60601-1/ES60601-1/EMC
◆ POT, Reed switch, Hall sensor
◆ Working temperature:
＋5℃ - -＋45℃(Load<500N)
-25℃-＋65℃(Load≥500N)
◆ Working temperature at full Performance: ＋5℃ - -＋45℃
◆ No-maintenance, Cost-effective
