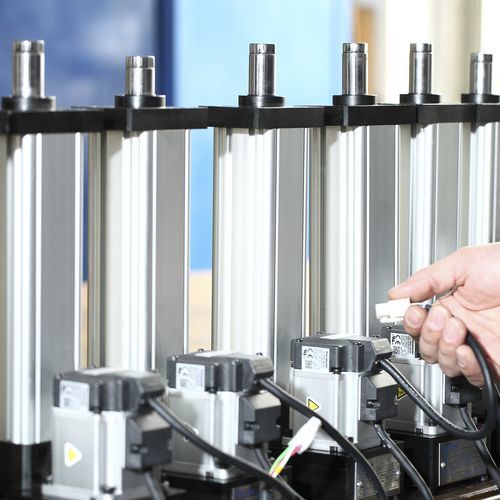

Electric servo-cylinder stepperservo-motorball screw
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Technology
- stepper, servo-motor, ball screw, roller screw linear, lead screw, telescopic
- Configuration
- double-acting, single-acting
- Material
- aluminum, stainless steel
- Motor
- AC, DC
- Norms
- ISO
- Protection class
- IP54, IP65
- Applications
- for the automotive industry, for materials handling, for presses, industrial, test, engine, for mobile machines
- Other characteristics
- programmable, precision, compact, high-efficiency, with integrated controller, high-speed, positioning, lightweight, high-performance, with integrated position sensor, motorized, extra-rigid, integrated, with integrated displacement encoder, with guide, pick-and-place, tubular, with sensor option, high load capacity, mini, hollow-plunger
- Stroke
Min.: 40 mm
(1.575 in)Max.: 2,000 mm
(78.74 in)- Force
Min.: 0.3 kN
Max.: 1,000 kN
- Torque
Min.: 0.28 Nm
(0.207 ft.lb)Max.: 300 Nm
(221.269 ft.lb)- Speed
Min.: 100 mm/s
Max.: 1,000 mm/s
- Max acceleration
Min.: 3 m/s²
(9.84 ft/s²)Max.: 10 m/s²
(32.81 ft/s²)- Repeatability
Min.: 0.02 mm
(0.0008 in)Max.: 0.03 mm
(0.0012 in)
Description
Lim-Tec Servo Cylinder
Rolled ball screw ensure servo cylinder the overall accuracy of 0.05 mm; Maximum rated load of 5 tons; Speed of 1 m/s, 100% can work continuously; Precision thrust control accuracy is 5%, the closed-loop control accuracy is 1%;
It can work in a harsh environment without failure for a long time, and achieve high intensity, high speed, high precision motion, smooth movement , low noise, and a special anti-rotation function to ensure high precision position control and high safety of the device;
Complete accessories: dust cover, anti-rotate device, safety nut, ball screw, limit switch, overload clutch, potentiometer, encoder, brake, hand wheel, installation accessories, etc.
