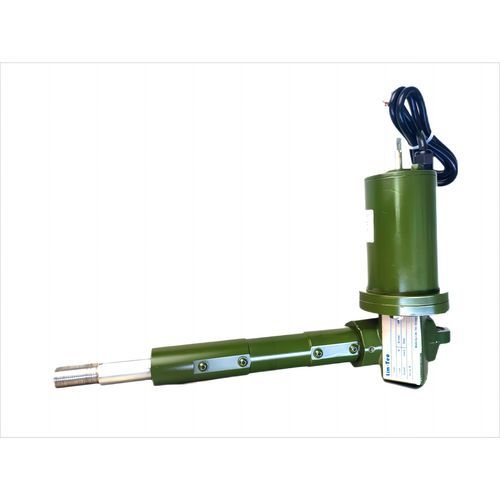

Linear actuator LAP Serieselectrictrapezoidal screwspring-return
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Technology
- trapezoidal screw
- Configuration
- spring-return
- Material
- stainless steel, aluminum, cast iron
- Motor
- DC
- Voltage
- 24-volt, 36 V, 48 V, 24 V
- Norms
- ISO
- Protection class
- IP65, IP55
- Applications
- for demanding applications, industrial, for the automotive industry, for process automation, for materials handling, for lifting, for trolleys, for agricultural machinery, linear for mechanical testing, for ventilation systems, for explosive atmospheres, for solar trackers, brake, for photovoltaic louver adjustment, for the electronics industry, for presses, control, for the aerospace industry, storage, for ultrasonic welding machines, engine, for mobile machines, for lifting applications, for construction equipment, for machine tools, for welding applications, for solar panels, for harsh environments
- Other characteristics
- self-locking, explosion-proof, maintenance-free
- Stroke
Max.: 3,000 mm
(118.11 in)Min.: 40 mm
(1.575 in)- Force
Max.: 250,000 N
Min.: 100 N
- Speed
Max.: 93 mm/s
Min.: 1 mm/s
- Ambient temperature
Max.: 40 °C
(104 °F)Min.: -15 °C
(5 °F)
Description
LIM-TEC LINEAR ACTUATOR
High strength/high wear-resisting material selection, high-precision parts processing, advanced design housing concept, high bearing capacity, impact resistance, low noise, long life of high quality products, to be able to work in bad industrial environment. Acme Screw Linear Actuator LAP Series (duty cycle 30%) and ball screw Linear Actuator LBP series (100% duty cycle ) Linear actuator driven by 12/24/36/48V dc motor, 220/380V single-phase/three-phase ac motor, stepping motor, servo motor, explosion-proof motor, gear motor, etc.
Linear actuator driven by 12/24V dc motor, 220/380V single/three-phase ac motor, stepping motor, servo motor, explosion-proof motor, gear motor, etc.
According to the self-locking coefficient, define the self-locking performance, can realize the absolute synchronization linear actuator , with encoder can realize more precision positioning (position accuracy 0.1 mm), the accessories is numerous, can be suitable for all kinds of special occasions.
Working environment temperature 5 ℃ to 40 ℃, if you need -40 ℃ to + 70 ℃.
Protection grade: IP54, IP55, (IP56, IP65, IP66), insulation class: F (H)
long-life grease, maintenance free.
