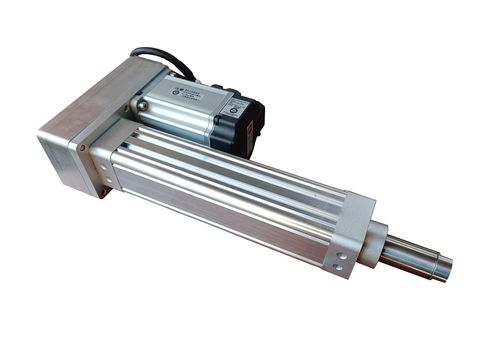

Linear servo-actuator EMB serieselectricwith servo-motorball screw
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Technology
- with servo-motor, ball screw
- Configuration
- double-acting
- Material
- aluminum, stainless steel
- Motor
- with brushless DC motor, AC
- Voltage
- 24-volt, 400 V, 230 V, 48 V
- Norms
- ISO
- Protection class
- IP65, IP54, waterproof, robust
- Applications
- industrial, for robots, for lifting, for the automotive industry, for machine tools, for presses, for semiconductors, for washdown applications
- Other characteristics
- compact, high-efficiency, precision, positioning, adjustable-stroke, mechanical, with brake, mini
- Stroke
Min.: 40 mm
(1.575 in)Max.: 300 mm
(11.811 in)- Force
Min.: 0.3 kN
Max.: 0.5 kN
0.35 kN
- Torque
Min.: 0.16 Nm
(0.118 ft.lb)Max.: 0.95 Nm
(0.701 ft.lb)- Rotation angle
Min.: 0.3 °
Max.: 0.3 °
- Speed
Min.: 10 mm/s
Max.: 100 mm/s
- Repeatability
Min.: 0.02 mm
(0.0008 in)Max.: 0.02 mm
(0.0008 in)
Description
LIM-TEC EMB Series Servo Electric Cylinder with advanced servo cylinder structure design and imported parts assembly, ensure that Lim-Tec servo electric cylinder in the domestic leading position, precision ball screw to ensure the overall precision of the position servo cylinder is 0.02 mm; Speed is 100 mm/s, 100% can work continuously; Precision thrust control accuracy was 5%, the closed-loop control accuracy is 1%; Precise control the speed, high performance low speed, high dynamic response time, high acceleration, high rigidity, impact resistance;Compact size, long life, simple operation and maintenance, low noise.
