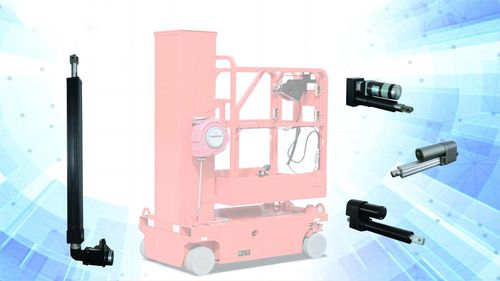

Actuator for lifting applications FMB35-10-570-ST-TF-PG01-G16-FCM(NC)-SNlinearelectricwith brushless DC motor
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Motor
- with brushless DC motor, AC
- Voltage
- 24 V
- Applications
- for lifting applications
- Stroke
570 mm, 775 mm
(22.441 in, 30.512 in)- Force
28 kN, 38 kN
- Torque
4.58 Nm, 8.4 Nm
(3.378 ft.lb, 6.196 ft.lb)- Speed
26 mm/s, 34 mm/s
Description
Telescopic boom lift
4M Scissor Lift Actuator
Product No.:FMB35-10-570-ST-TF-PG01-G16-FCM(NC)-SN
Rated load:28KN, stroke:570mm,speed:26mm/s
24v DC brushless motor, rated power of 1.2KW; Rated torque:4.58NM
Rotate speed:2500RPM,With brake (with manual release)
6 M Scissor Lift Actuator
Product No:FMB40-10-775-ST-FO-PG10-FCM(NC)-SN
Rated Load:38KN, Max of 52KN, stroke775mm, speed:34mm/s
Triple-phase asynchronous motor, Rated power of 1.8kw, Rated torque 8.4NM
Rotate speed:2050rpm,with brake (with manual release)
