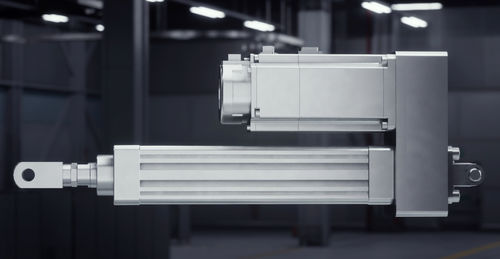

Electric cylinder pistontelescopiccylinder
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Technology
- piston, telescopic, cylinder, screw, with servo-motor, timing belt, cable
- Configuration
- spring-return
- Material
- stainless steel, aluminum, alloy
- Motor
- DC, synchronous, AC
- Voltage
- 230 V, 400 V, 24-volt
- Norms
- ISO
- Protection class
- IP54, IP65
- Applications
- for lifting, industrial, for lifting applications, for ventilation systems, for washdown applications, for the automotive industry, for the oil and gas industry, for photovoltaic applications, for die-casting applications, for lathes, for process automation, for medical equipment, propeller, for construction equipment, for presses, security, for materials handling, control, test, for OEM, linear for mechanical testing, for bed adjustment, for forklift trucks, for machine tools, steering, for vehicles, brake, for lifting platforms, for demanding applications, for mobile machines, for agricultural machinery, for robots, for welding applications, for explosive atmospheres
- Other characteristics
- standard, adjustable-stroke, with brake, with linear motion units, with integrated position sensor, welded, high-torque, high-resistance, high-speed, high-frequency, mechanical, for integration, with mechanical interlock system, motorized, horizontal transfer movement, in-line, trunnion, interchangeable square head, CAN Bus, with potentiometer, with belt transmission, frictionless guided
- Stroke
Max.: 3,000 mm
(118.11 in)Min.: 50 mm
(1.969 in)- Force
Max.: 1,000 kN
Min.: 0.3 kN
- Speed
Max.: 1,000 mm/s
Min.: 10 mm/s
- Ambient temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)
Description
Servo electric cylinder can replace hydraulic cylinder and pneumatic cylinder completely with the advantages of energy conservation and environmental protection and easily connected to PLC control system to achieve high precision motion control. Servo electric cylinder can achieve protection grade IP55, IP56, so it can be widely used in outdoor conditions such as paper making industry, chemical industry, welding industry.
