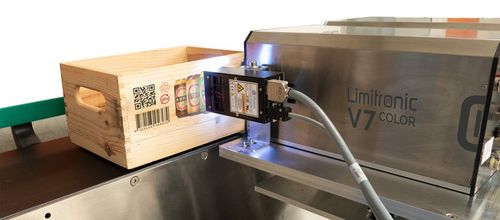

UV inkjet printing unit V7

compacthigh-speedhigh-quality

Native resolution 360 dpi High contrast Low level of maintenance Integrated message editor High print speed Single Pass High performances on a compact and reduced design Characteristics • Vertical native resolution 360 dpi • High quality barcodes: GS1 standards • Intuitive user interface • On-screen layout preview (WYSIWYG) • UV LED inks • Possible remote assistance • Possible barcode readability integration Printable products Porous board, coated boards, glossy boards, paper, textile, wood, plastic, metal, foam, EPS, ... OPTIONS Barcode verification after printing, alarm beacon lights, barcode scanning for product ID, external message selection via hardware Advantages • Solvent-free inks • Flexibility in short runs and promotions • Almost zero maintenance • No need to stop for consumables replacement • Instant drying Specifications Printing Printhead resolution: 360 dpi Speed: Up to 60 m / min Printhead height: 70 mm (scalable) Intensity: 7 levels Font types: True Type ™, Open Type ™ Character codification: Unicode Bar codes: GS-1 standards EAN/UPC, ITF-14, GS1-128, GS1 Datamatrix, GS1 QR Code Variable fields printing: User variables (customized fields) Automatic fields (Best before dates, shift, counters) Orientation: (depending on model type) Vertical (product - lateral side) Horizontal (product lid - on top) Encoder: (programmable) Automatic speed calibration Electrical Power supply: 230 VAC Inputs: 1 x print trigger 1 x encoder Alarm outputs: Configurable Communication ports: RS-232 RS-422 / 485 / 232 (optional) Ethernet USB WiFi (optional) Other Specifications Environmental Working conditions: 5 – 45 ºC (41 – 113 ºF) Protection: IP 54 (Console only)
