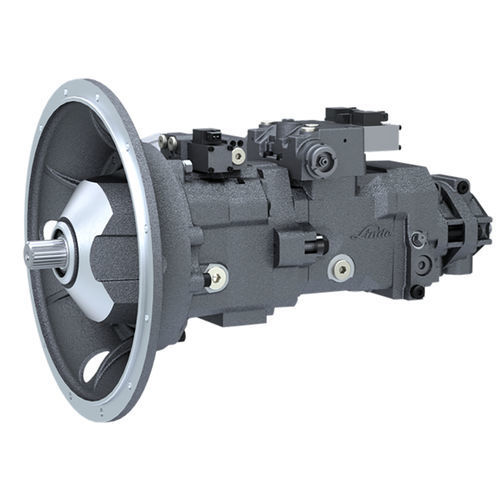

Open circuit hydraulic pump

closed circuitcompactvariable-displacement

Set up by combining our variable displacement pumps and self-regulating pumps. They can either supply larger volume flows or feed different circuits. The rated size and the type of the pump for open or closed circuits are variable. The sequential arrangement is determined by the maximum torque which can be transferred. Due to their swashplate design our motors can also be combined to form double and tandem motors. Advantages Double, tandem and multiple pumps only one drive shaft required no splitter box required for the pumps individual control of each single pump no adverse influence on functionality of the single rotating groups advantages such as high dynamics and precise control remain in full HPR double pumps two pumps of the same rated size, fitted back-to-back single or dual circuit common port plate housing Tandem and multiple pumps two or more pumps, fitted face-to-back tandem pumps: Pumps of the same type open and/or closed circuit multiple pumps: Pumps of different types HMV double motors two motors of the same rated size can be controlled individually or together common ports for high pressure, servo-and control pressure both motors can swivelled to 0 cc/rev Tandem motors two motors of the same type, fitted face-to-back both motors can swivelled to 0cc/rev separate ports, individual control possible
