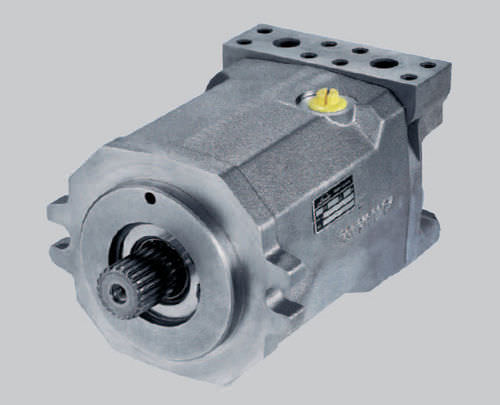

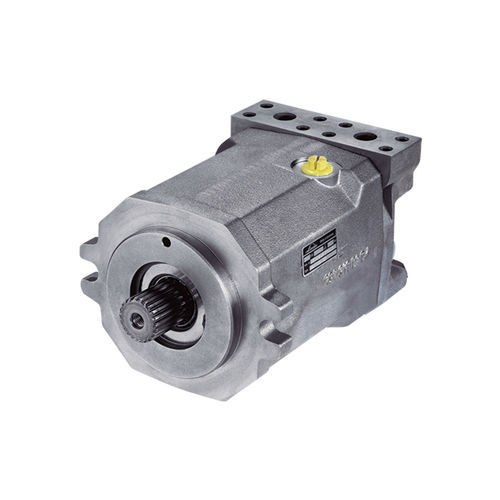

Axial piston hydraulic motor HMF-02/HMA-02
fixed-displacementcompactclosed circuit

Add to favorites

Compare this product

Characteristics

Technology

axial piston

Other characteristics

fixed-displacement, compact, closed circuit, low-speed, high-torque

Pressure

450 bar, 500 bar
(6,527 psi, 7,252 psi)

Rotational speed

3,600 rpm, 3,800 rpm, 3,900 rpm, 4,100 rpm, 4,500 rpm
(22,619.47 rad.min-1, 23,876.1 rad.min-1, 24,504.42 rad.min-1, 25,761.06 rad.min-1, 28,274.33 rad.min-1)

Torque

Max.: 1,929 Nm
(1,422.76 ft.lb)

Min.: 244 Nm
(179.97 ft.lb)

Displacement

Max.: 282 cm³
(9.54 US fl oz)

Min.: 35 cm³
(1.18 US fl oz)

Description

Series 02 motors from Linde Hydraulics are different from those common in the market. They are able to provide the required torque even at low speeds and make it possible to start smoothly and sensitively. Therefore, additional gear ratios for rpm reduction are not necessary. This reduces the amout of parts going into the component and also increases the overall mechanical efficiency, minimizes windage losses as well as the noize level of the machine. Advantages steady low speed high reliability long service life Design characteristics axial piston motor in swashplate design for high pressure open and closed circuit systems purge valves for circuit and case flushing optional SAE high pressure ports radial or axial optimized starting and low speed behaviour high pressure relief valves set fixed or variable optional SAE mounting flange with ANSI or SAE spline shaft
