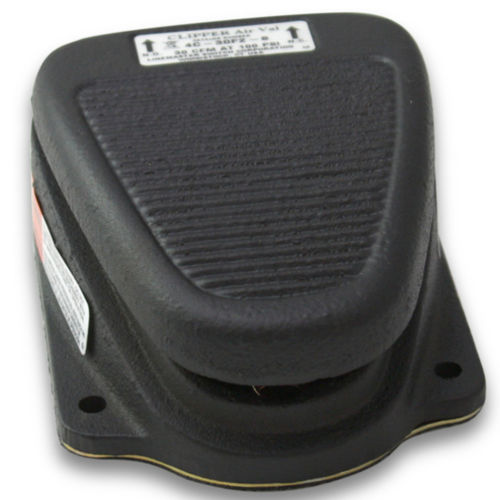

Control foot switch 4C-30F2-S

pneumaticmomentarysingle pedal

Medium Duty General Purpose Design Features & Benefits Designed for long life operation Nonskid Base Pad Plunger can be depressed flush with valve body without damage to valve Standard 1/8-27 N.P.T. input and output ports Filtered and lubricated air supply is required for best operation Line pressure up to 150 P.S.I. 2 holes provided for rigid mounting to floor or equipment Two-way models do not exhaust back pressure Materials Internal Valve is constructed of a Non-Ferrous body, Stainless steel plunger and Teflon coated buna-N O-rings Air flows when plunger is depressed, stops flowing when plunger is released and exhausts back pressure on output side Air exhausts around plunger Operating temperature 0 to 131 °F (-18 to +55 °C) Rugged Cast Iron Housing Options 2-way, 3-way and 4-way models available Heavy gauge steel guard available Applications Cut & Form Machine for Transistors
