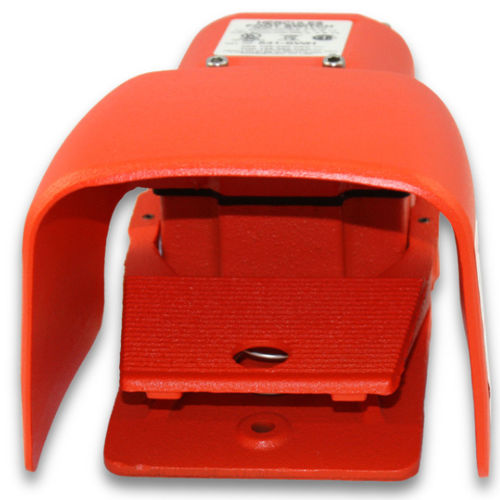

Control foot switch 575-DWHA

electricRF wirelessmomentary

Standard Full Shield Features & Benefits Rugged cast metal enclosure has sufficient weight to keep the switch from sliding when being operated All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw In all Maintained Contact models the release is accomplished by simply pressing the latch with a light forward movement of the toe. The release is placed under the Full Shield so falling objects cannot easily release it 3 holes provided for rigid mounting to the floor or equipment Materials Treadle, cover and housing constructed from cast iron for strength and durability Protected by a strong cast aluminum Shield Painted Alert Orange Single 3/4"-14 N.P.T. threaded conduit entry is standard Options Oversize "O" and "OX" Shield models accept oversized safety shoes and metatarsal foot guards. The "OX" Shield has an additional 3/4" (19.1 mm) opening height as compared to the "O" shield Dual 1/2"-14 N.P.T. threaded conduit entry and metric sizes available to the O.E.M. on special order Special Twin & Triple Models available to the O.E.M. on special order AirVal models are available Potentiometer models are available RF Wireless models are available Hercules models available with cast alluminum base & covers (except unshielded cover which is gray iron) Applications Benders Box Marker Brakes Chopper
