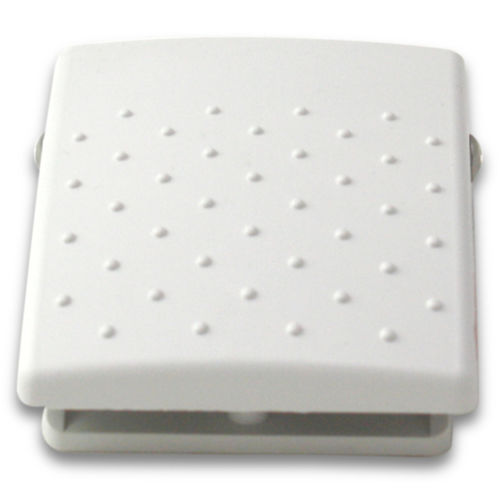

Control foot switch SL1-S

electricmomentaryDPDT

Small Lightweight Low Profile Design Features & Benefits Maximum versatility, total performance in a small package Rustproof and corrosion Resistant Mounting holes provided for rigid mounting to floor and or equipment Non-Skid Feet Raised Dimples on treadle for positive traction during operation 10A 125-250 VAC rating Designed to meet UL, CSA & CE requirments Materials Cover & Base formed from Light Gray (PMS 427C) ABS Polymeric Material Non-glare finish Silver Alloy contacts SPDT, DPDT, Two-Stage, Momentary Operation Integrated adjustable strain relief clamp accommodates cord sizes from .250 Dia. to .400 Dia Options Custom colors and color matching available with quantity orders Fully submersible in water (IP68 Only) Twin & Triple models available Accessory base units available for configurations using multiple switches Heavy gauge steel guard available Custom connectivity options including Universal Serial Bus (USB) Custom cabeling available 3A 125-250 VAC & 5A 125-250 VAC ratings available Applications Dental Scaler X-ray Equipment Laser
