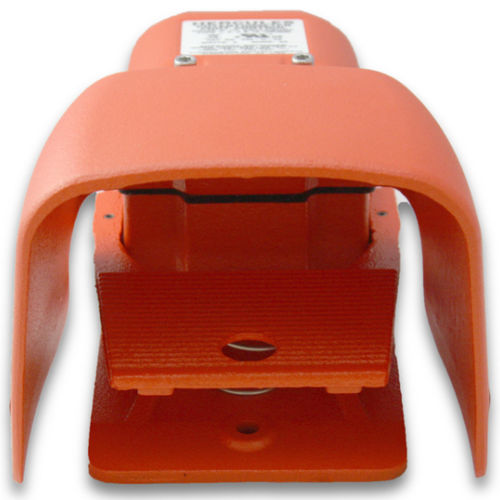

Control foot switch 500-A2H-5K

potentiometermomentaryDPDT

NEMA Type 1, 2, 4, 13 • UL ENCLOSURE Type 1, 2, 4, 13 • EN 60529 Degree Of Protection • IP56 Standard Full Shield Rugged cast metal enclosure has sufficient weight to keep the switch from sliding when being operated All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw 3 holes provided for rigid mounting to the floor or equipment Specify the maximum resistance you want Treadle and housing constructed from cast iron for strength and durability Protected by a strong cast aluminum shield Painted Alert Orange Single 3/4"-14 N.P.T. threaded conduit entry is standard This switch is designed for use with variable speed motor drives and is available in selected 2 watt linear values Depressing the treadle rotates the potentiometer from zero to the selected maximum resistance shown below The treadle is spring loaded and returns to the normal position when the foot pressure is removed Auxiliary switch contact rated at 15 Amps 125-250 VAC can be added to the control The switch will operate at the beginning of the treadle stroke
