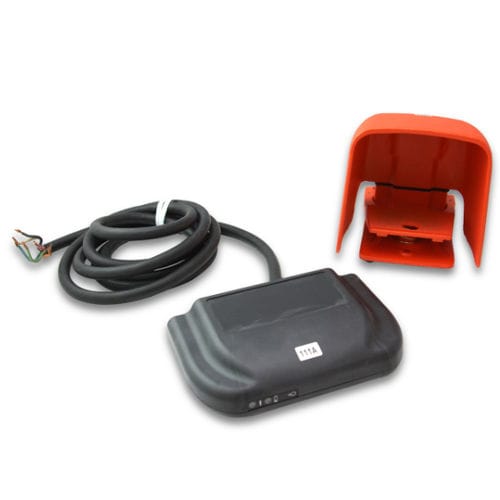

Control foot switch SP-831-111202XA

RF wirelessmomentarysingle pedal

EN 60529 Degree of Protection • IP68 FCC Features & Benefits Removes clutter of wires under foot IP68 fully submersible in water Transmitter IPX1 Degree of Protection for the Receiver Rugged cast metal enclosure has sufficient weight to keep the switch from sliding when being operated/ All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw Heavy duty weather resistant construction for harsh environments Momentary actuation Contacts: single pole, double throw, up to 10 amp service Available in up to 3 switch functions Multiple systems may be used in the same vicinity at the same time 40 foot range of RF transmission 700 hours of battery life at 50% duty cycle 3 (AA) batteries required for Transmitter 3 holes provided for rigid mounting to the floor or equipment Available for US and European service/ 802.15.4 Compliant 2.405-2.480 GHz, 15 Channels Available 802.15.4 Compliant All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw Materials Treadle and housing constructed from cast iron for strength and durability Protected by a strong cast aluminum oversized shield Painted Alert Orange Options Anti-trip and gated models available Oversize “O” and “OX” Shield models accept oversized safety shoes and metatarsal foot guards. The “OX” Shield has an additional ¾” (19.1 mm) opening height as compared to the “O” shield Handle Option available for ease of maneuvering the foot pedal Receiver powered by 6 Volt Adapter Twin Version available upon special order
