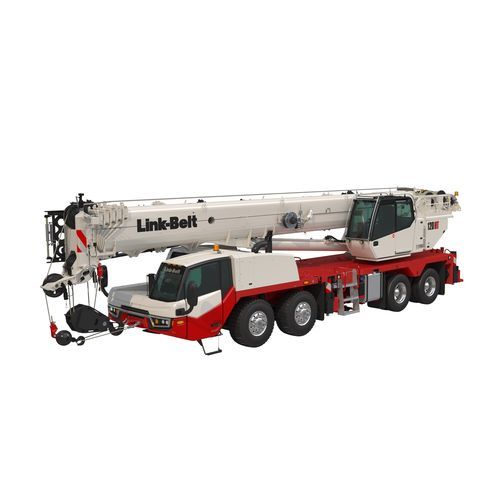

Truck-mounted crane 120|HT

boomtelescopicfor construction

• Improved and unmatched efficiency in transportability for all geographic markets • Industry first suspension and axle design: independent air-ride suspension & air disc brakes • 10 percent higher gross axle rating (51,200 lbs on front tandem) than any other truck crane in the market • Link-Belt SmartFly: different configurations to address any jobsite need • NEW for the 120|HT: 3 piece 9.5’-35’-58’ fly with integrated heavy lift section • All new carrier cab: NEW wider carrier cab, 9 in wider than current truck crane cab • TPMS – Wireless Tire Pressure and Temperature Monitoring • Smart Stack counterweight monitoring system 120 ton | 100 mt Nominal Capacity @ Radius - 120 Tons @ 7' Standard Boom - 38.3'-164.1'(11.7-50.0m) Pin & Latch Telescope System - Latching Attachment - Option 1 - A:35'(10.7m)Latt B:9.5'-35'-58'(3.0-10.7-17.7m)Latt Attachment - Option 2 - A:(1) 16'(4.9m) insert B:(2) 16'(4.9m) inserts Max. Tip Height - 262'(79.7m) Max. Line Pull - 23,632lb (105.12kN) Max. Speed (ft per minute) - 354 fpm (107.9 m/min)
