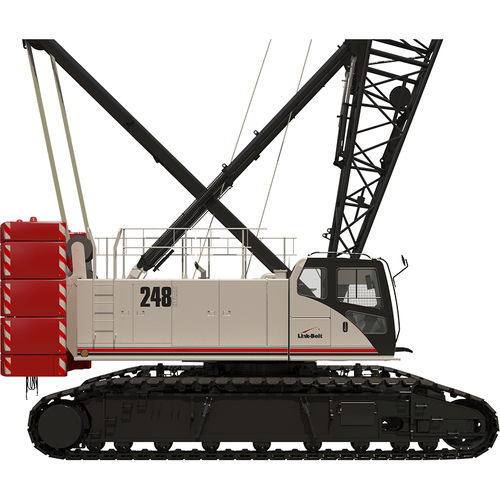

Crawler crane 248 HSLlatticeboomconstruction
Add to favorites
Compare this product
Characteristics
- Configuration
- crawler
- Structure
- boom, lattice
- Operating environment
- construction
- Applications
- lifting, transport
- Other characteristics
- hydraulic
- Lift capacity
200 t
(220.5 us ton)- Working height
Min.: 16.76 m
(54'11" )Max.: 86.86 m
(284'11" )
Description
•Base Rating
200 USt
•Boom Lengths
55 - 285 ft (10 ft Increments)
•Fixed Jib Lengths
30 - 100 ft (10 ft Increments)
•Fixed Jib Offsets
5°, 15°, and 25°
•Maximum Tip Height (Fixed Jib)
347 ft
•Engine Make & Model
Cummins QSB 6.7
•Horsepower
270 hp
•Maximum Hoist Pull / Speed
46,924 lbs
•Counterweight Option 5
ABCD+A CTWT 142,900 lbs
•Working Weight
270,130 lbs
•Main Transport Load
88,300 lbs
