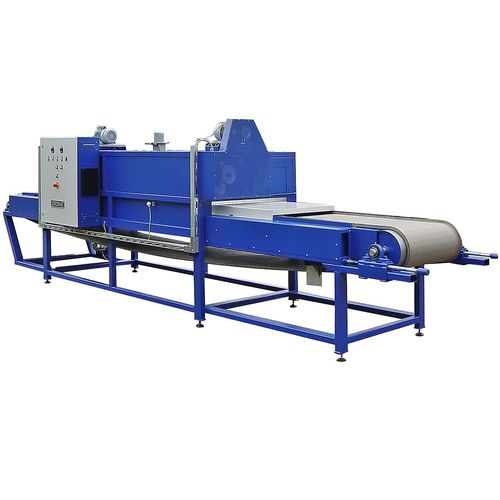

Chamber furnace FAU

tubularspiraldrying

drying For burn-in of water-soluble lacquers on wire bending parts. Other possible applications are: Drying and curing of materials and building components without solvent release Research and Development The most important characterstics Flow rate appr. 1000 kg/ h The tight spiral chain belt with bent up trough edge enables a transport frequency-controlled from 0,1 – 0,5 m/min. The heating registers are designed with long-lasting tubular heating elements and separated into two control zones. The circulation air operation is carried out via two tangetial fans with a volume flow of each 160 m3/ min for effective heat transfer to the material. Easy operation and handling Robust design Flexible applications Quality made in Germany Options Different further temperature program controller Screen recorder Process guiding software according to each control system
