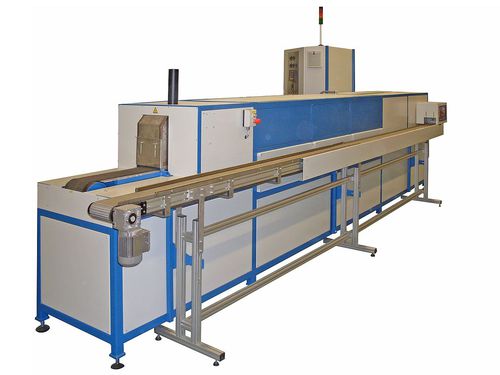

Chamber furnace FAU

conveyorspiraldrying

curing, drying For drying and curing of thick film pastes on PZT piezo ceramics. Further possible applications: Research and development PRODUCT SPECIFICATIONS The most important characteristics: Tight spiral chain belt made of 1.4841 enables frequency controlled transport of 60 – 150 mm/min. Heating system made of FeCrAl heating elements, 30 kW heating power, separated in 5 control zones Continuous retort made of 1.4841 in heating area Active cooling system by axial fan underneath transport belt Exhaust system as injector principle on furnace inlet Shifting system at the outlet of the cooling channel in connection with an accumulating conveyor belt for transport of the material to charging place Easy operation and handling Robust design Flexible applications Quality made in Germany We make it possible: Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes. Options: Various further temperature program controllers Screen recorder Process guiding system depending on control system Possible linking with handling systems
