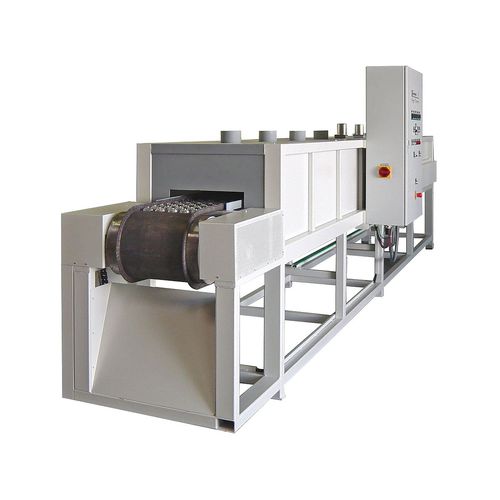

Chamber furnace FAU

spiralannealingthermal

annealing, stress-relieving, tempering For continuous cooling of pressed glass lenses. Further possible applications: Drying and stress-relieved annealing Research and development PRODUCT SPECIFICATIONS The most important characteristics: Heating system made of FeCrAl heating elements in ceiling and bottom, 43 kW heating power, separated symmetrically in flow direction in 5 control zones Transport of material on tight spiral chain belt made of 1.4301, with bended channel edge of 30 mm Frequency controlled transport speed in range of 50 – 200 mm/min Staggered cooling system consisting of inactive and active cooling zones by axial fan underneath transport belt and manually adjustable exhaust flaps Easy operation and handling Robust design Flexible applications Quality Made in Germany We make it possible: Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes. Options: Various further temperature program controllers Screen recorder Process guiding system depending on control system Pre-heating furnaces for glass rods
