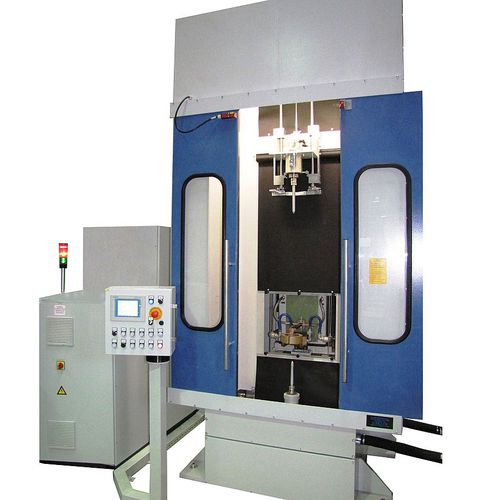

Induction hardening machine

vertical

TMAX UP TO 0 °C VERTICAL INDUCTION HARDENING MACHINE, 150 KW Applications: hardening Other possible applications are: Hardening of workpieces (shafts, rods, gears, leads, etc.) Tooth by tooth gear hardening The most important characteristics: MFG-150 induction generator (150 kW continuous output power) Built-in impedance matching transformer Max hardening length: 1500 mm Max workpiece diameter: 160 mm Continuous hardening with or without rotation; rotation speed continuously adjustable Stationary hardening with or without rotation; rotation speed continuously adjustable Built in quenching system with filters, pumps and temperature control Control unit: Siemens Simatic S7, up to 40 different hardening programs Standard options: Servo motor for tooth by tooth hardening Cooling system for induction heating converter, inductor and quenching medium Different power ratings Different hardening lengths Different workpiece diameters We make it possible Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.
