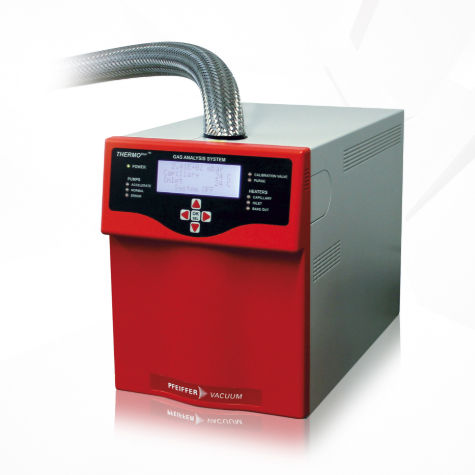

Carbon dioxide analyzer EGA

carbon monoxidegastrace

Possible Techniques: FTIR: Fourier Transform Infrared Spectroscopy: Measurement of basic and trace gas components until ppm range (for example H2O, CO2, CO, H2S...). Polar Molecules are necessary. Raman-Spectroscopy: Measurement of basic gas components. Also not polar molecules like H2 or N2 are measurable. ELIF: Excimer Laser induced Fragmentation Fluorescence: UV-Laser-based Method of Measuring of gaseous alkaline compounds (for example NaCI, NaOH, KCI, KOH). Also at 193 nm an entry through UV_Saphire is possible. Advantages of the optical In-Situ window: No Cooling / Modification of the measuring gas (for example no out-condensation, no transition reaction, no equilibrium shift) Many materials with high condensation temperature for example alkali metals (Na, K and their combinations) are now able to be measured, heated capillary only suitable for some 200 - 250°C, the optical port allows measurement until 1600°C No intervention into the measuring system (for example when pulling gas by vacuum) No contamination of the measuring gas in the capillary to M/S or FTIR Real-time online-Measurement (no dead time until measuring volume enters the measuring instrument
