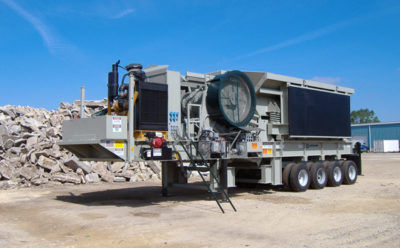

Jaw crusher LJ3062W

mobile

60” x 35’ portable under crusher side discharge conveyor with a magnet and pan feeder. Conveyor includes: Single axle with four 11.00 x 22.5 tubeless tires, brakes, belt, v-belt drive. 25 hp electric motor, starter, controls and wiring. 55 in-line self-cleaning magnet with 8 kw rectifier and support structure 48” x 78” Pan Feeder Under the Jaw 3/8” formed steel pan. (2) Vibrating motors 2.4 HP each. ½” pan liners. ¾” impact absorbent material between pan and liners. Mounted on (6) coil springs. Rubber flashing mounted around the rear and sides of the feeder to eliminate spillage. Helical gears. Model LLH-22 with two full-length, self-counterweighted solid steel shafts. Four (4) 110-mm spherical roller bearings and an oil splash lubrication system. Mechanism is enclosed in a dustproof housing. Sheaves, belts, and pivoted motor base are included along with a 40 hp, NEMA C High-Torque 1800 rpm TEFC electric motor li>Quad axle Hutch suspension with sixteen (16) Hub Piloted Wheels. 11:00 x 22.5 radial tubeless tires, and air brakes. Also includes all necessary chutes and supports, support legs, guards for v-belt drives, operator’s platform with railing and ladder, tail lights, reflectors, directional signals, and mud flaps.
