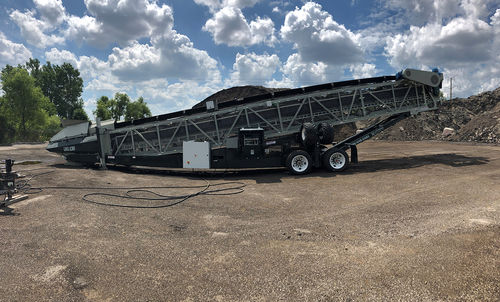

Fully-automatic stacker LWX130

handlingtransportflexible

The Lippmann LWX Series Telescoping Stackers are the first in a new line of self-contained desegregating conveyors to enhance and streamline materials handling. The LWX Series Telescoping Stackers maximize stockpile capacity using a robust, fully automated and highly flexible control system providing optimal control of material quality. With its optional onboard diesel hydraulic unit, the LWX Stackers are highly portable, complementing Lippmann’s full line of portable crushing and screening plants. The on-board power proves cost effective for customers, removing the need to transport and setup a separate genset or arrange supply of main power on-site. Setup from delivery to operation can be accomplished in 15 minutes. The design reflects feedback from customers in a cross-section of material handling applications and industries. • Wide heavy-duty telescoping conveyor-36” (900mm) • Counterweighted design keeps the axle out of stockpile • 3-position axle (Inline/Transverse/Radial) • Wheel drive on lift axle • Full automation package • Integral kin pin/pivot point
